FVP
12147034

第三方数据FVP : 12147034

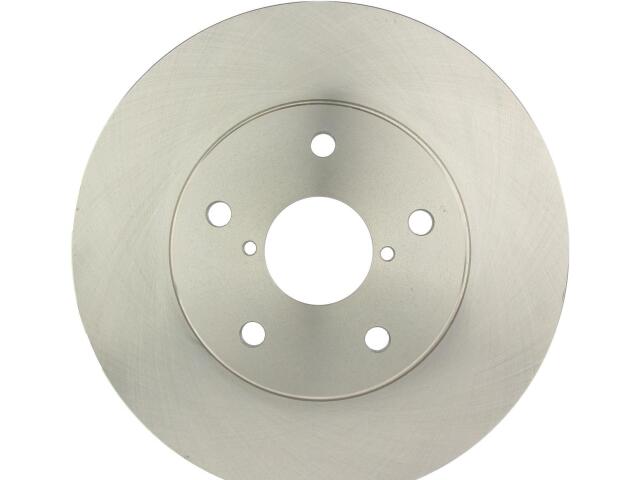

Rotor
FVP : 12147034

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.287
Center Hole Diameter (MM): 58.100
Disc Mounting: Floating
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Hat ID in: 5.898
Hat ID mm: 149.800
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
OEM Vane Count: 54
Outside Diameter (IN): 11.535
Outside Diameter (MM): 293.000
Overall Height (IN): 2.236
Overall Height (MM): 56.800
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.504
Stud/Lug Hole Diameter (MM): 12.800
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

SUBARU (1)

OE号码

品牌	号码
OE	121-4703*
