12147030

第三方数据FVP : 12147030

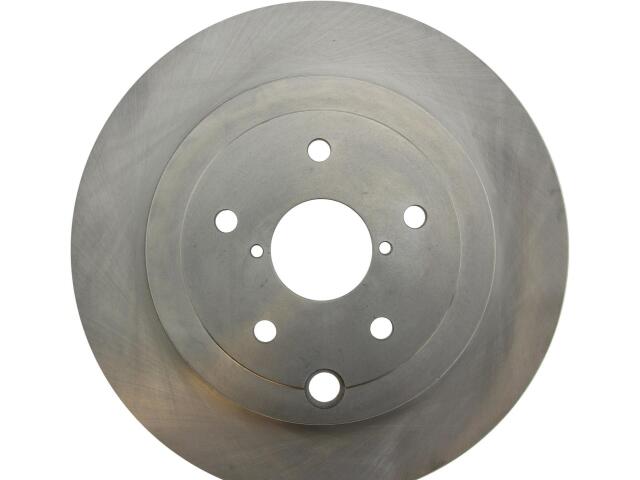

Rotor
FVP : 12147030

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.283
Center Hole Diameter (MM): 58.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.709
Discard Thickness (MM): 18.000
Hat ID in: 7.472
Hat ID mm: 189.800
Max PB Drum Dia in: 7.520
Max PB Drum Dia mm: 191.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 7.480
Nominal Drum Diameter (MM): 190.000
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20.000
Outside Diameter (IN): 12.445
Outside Diameter (MM): 316.100
Overall Height (IN): 2.500
Overall Height (MM): 63.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.504
Stud/Lug Hole Diameter (MM): 12.800
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Pillar

适用车型

SUBARU (3)

OE号码

品牌	号码
OE	121-4703*
