第三方数据FVP : 12147025

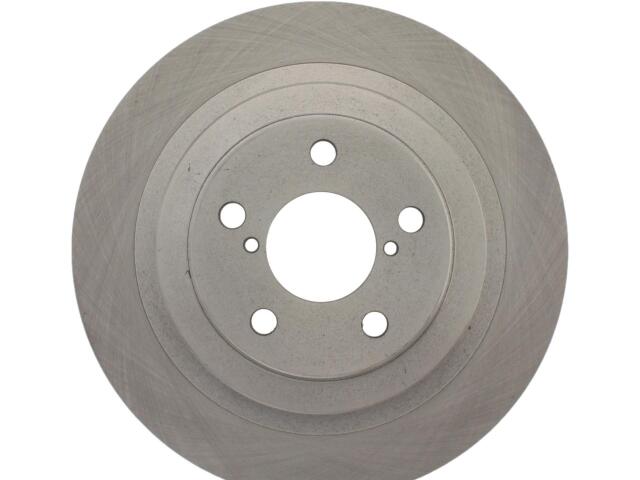

Rotor
FVP : 12147025

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.283
Center Hole Diameter (MM): 58.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.630
Discard Thickness (MM): 16.000
Max PB Drum Dia in: 6.732
Max PB Drum Dia mm: 171.000
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Drum Diameter (IN): 6.693
Nominal Drum Diameter (MM): 170.000
Nominal Thickness (IN): 0.705
Nominal Thickness (MM): 17.900
Outside Diameter (IN): 11.402
Outside Diameter (MM): 289.600
Overall Height (IN): 2.657
Overall Height (MM): 67.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.504
Stud/Lug Hole Diameter (MM): 12.800
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

SUBARU (2)

OE号码

品牌	号码
OE	121-4702*
