FVP
12146074

第三方数据FVP : 12146074

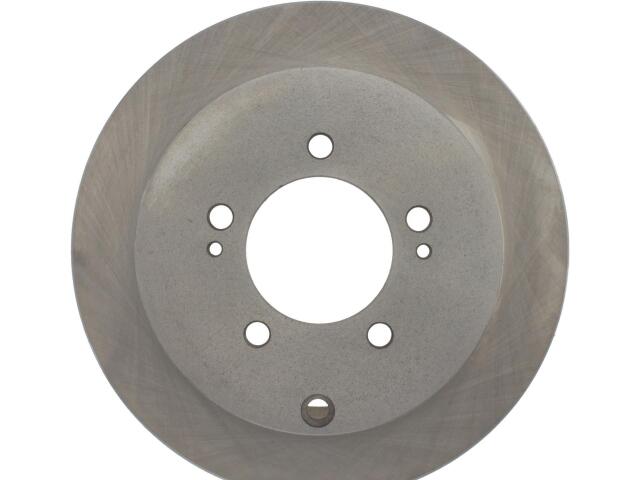

Rotor
FVP : 12146074

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.150
Center Hole Diameter (MM): 80.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.331
Discard Thickness (MM): 8.400
Hat ID in: 7.480
Hat ID mm: 190.000
Max PB Drum Dia in: 7.520
Max PB Drum Dia mm: 191.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 7.476
Nominal Drum Diameter (MM): 189.900
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 11.890
Outside Diameter (MM): 302.000
Overall Height (IN): 2.315
Overall Height (MM): 58.800
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.496
Stud/Lug Hole Diameter (MM): 12.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

MITSUBISHI (2)

OE号码

品牌	号码
OE	121-4607*
