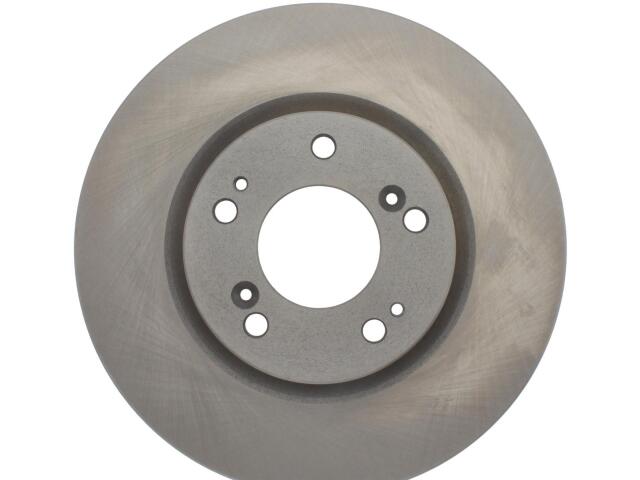

Rotor
FVP : 12146068

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.705
Center Hole Diameter (MM): 68.700
Disc Mounting: Floating
Discard Thickness (IN): 0.961
Discard Thickness (MM): 24.400
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.035
Nominal Thickness (MM): 26.300
Outside Diameter (IN): 11.575
Outside Diameter (MM): 294.000
Overall Height (IN): 1.811
Overall Height (MM): 46.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.484
Stud/Lug Hole Diameter (MM): 12.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

MITSUBISHI (2)

OE号码

品牌	号码
OE	121-4606*
