第三方数据FVP : 12146062

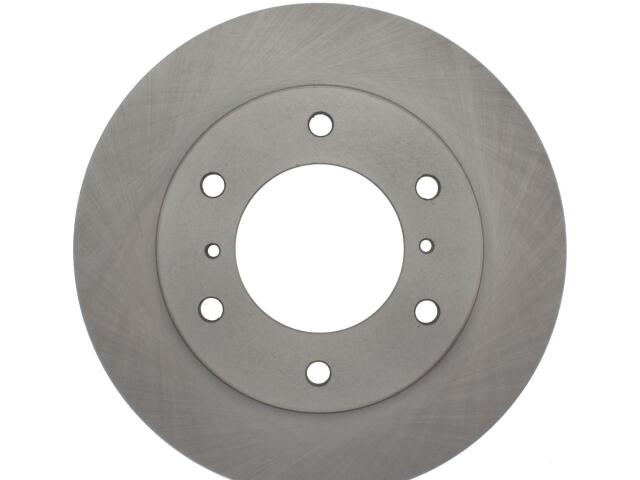

Rotor
FVP : 12146062

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.701
Center Hole Diameter (MM): 94.000
Disc Mounting: Floating
Discard Thickness (IN): 0.961
Discard Thickness (MM): 24.400
Mounting Bolt Hole Circle Diameter (IN): 5.500
Mounting Bolt Hole Circle Diameter (MM): 139.700
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26.000
Outside Diameter (IN): 11.417
Outside Diameter (MM): 290.000
Overall Height (IN): 1.823
Overall Height (MM): 46.300
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.496
Stud/Lug Hole Diameter (MM): 12.600
Stud/Lug Hole Quantity: 6
Surface Type: Smooth
Vane Style: Straight

适用车型

MITSUBISHI (2)

OE号码

品牌	号码
OE	121-4606*
