FVP
12145098

第三方数据FVP : 12145098

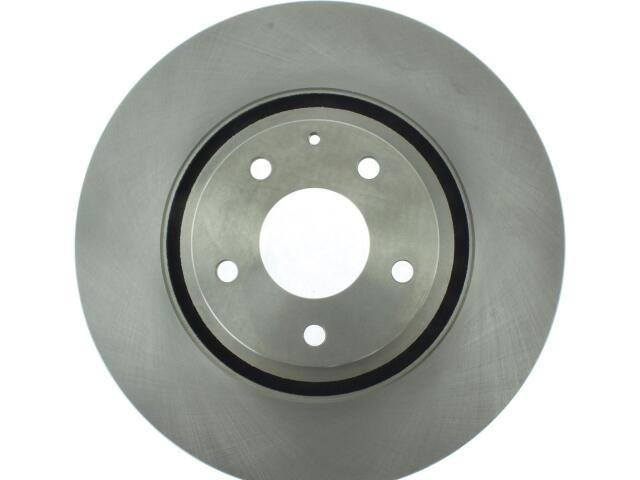

Rotor
FVP : 12145098

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Hat ID in: 5.622
Hat ID mm: 142.800
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
OEM Vane Count: 56
Outside Diameter (IN): 12.594
Outside Diameter (MM): 319.900
Overall Height (IN): 2.024
Overall Height (MM): 51.400
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.524
Stud/Lug Hole Diameter (MM): 13.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

MAZDA (3)

OE号码

品牌	号码
OE	121-4509*
