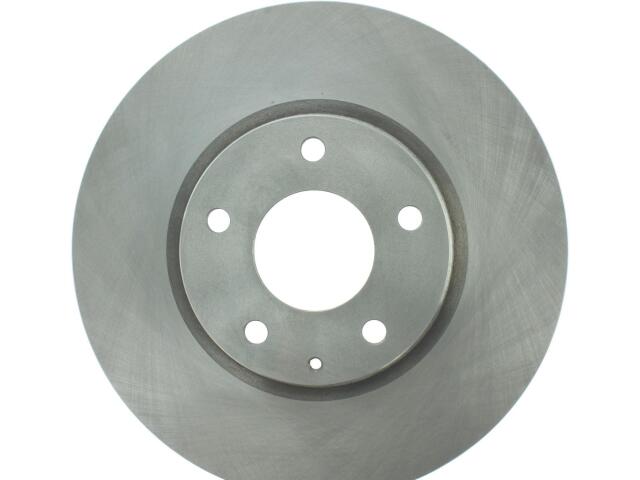

Rotor
FVP : 12145096

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Hat ID in: 5.614
Hat ID mm: 142.600
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
OEM Vane Count: 50
Outside Diameter (IN): 11.685
Outside Diameter (MM): 296.800
Overall Height (IN): 2.028
Overall Height (MM): 51.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.524
Stud/Lug Hole Diameter (MM): 13.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	121-4509*
