FVP
12145091

第三方数据FVP : 12145091

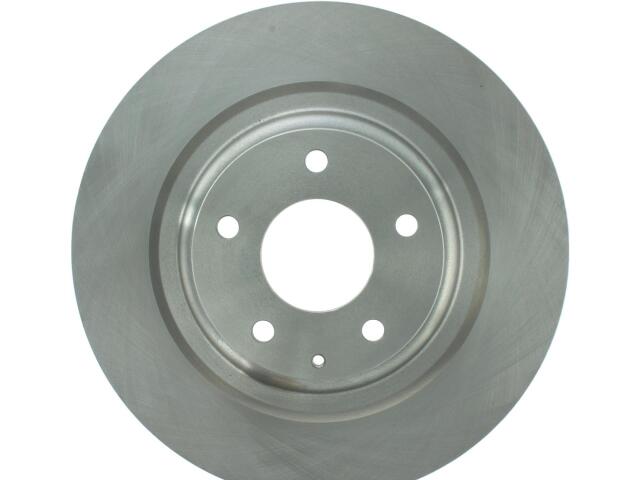

Rotor
FVP : 12145091

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9.000
Hat ID in: 5.610
Hat ID mm: 142.500
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.433
Nominal Thickness (MM): 11.000
Outside Diameter (IN): 12.791
Outside Diameter (MM): 324.900
Overall Height (IN): 1.776
Overall Height (MM): 45.100
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.524
Stud/Lug Hole Diameter (MM): 13.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	121-4509*
