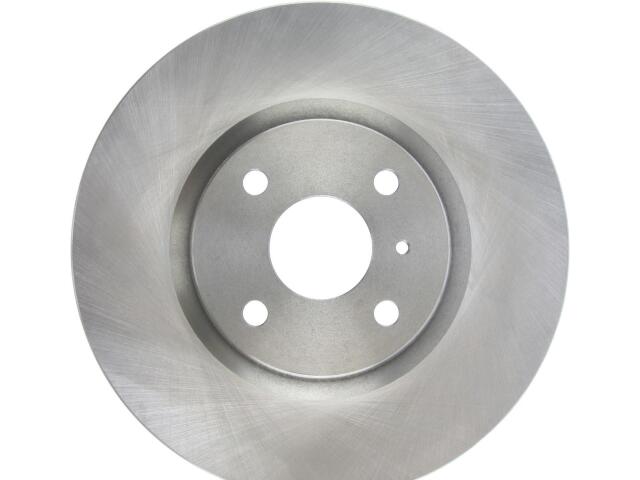

Rotor
FVP : 12145090

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.165
Center Hole Diameter (MM): 55.000
Disc Mounting: Floating
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20.000
Hat ID in: 5.039
Hat ID mm: 128.000
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
OEM Vane Count: 111
Outside Diameter (IN): 11.024
Outside Diameter (MM): 280.000
Overall Height (IN): 1.732
Overall Height (MM): 44.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.516
Stud/Lug Hole Diameter (MM): 13.100
Stud/Lug Hole Quantity: 4
Surface Type: Smooth
Vane Style: Pillar

适用车型

FIAT (1)

MAZDA (1)

OE号码

品牌	号码
OE	121-4509*
