FVP
12145089

第三方数据FVP : 12145089

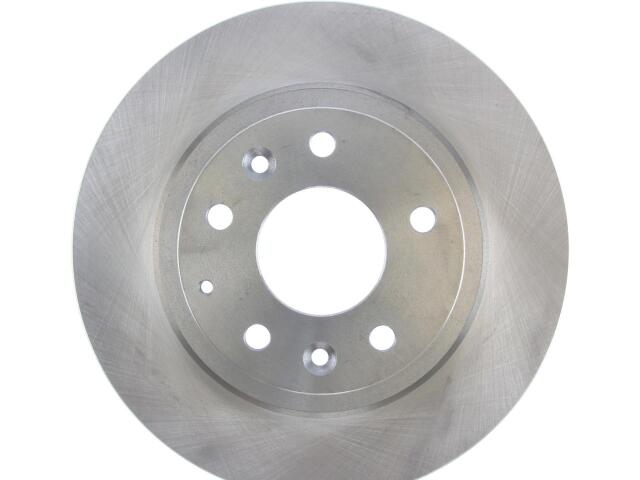

Rotor
FVP : 12145089

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 0.295
Discard Thickness (MM): 7.500
Hat ID in: 5.559
Hat ID mm: 141.200
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.374
Nominal Thickness (MM): 9.500
Outside Diameter (IN): 11.063
Outside Diameter (MM): 281.000
Overall Height (IN): 1.409
Overall Height (MM): 35.800
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.524
Stud/Lug Hole Diameter (MM): 13.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	121-4508*
