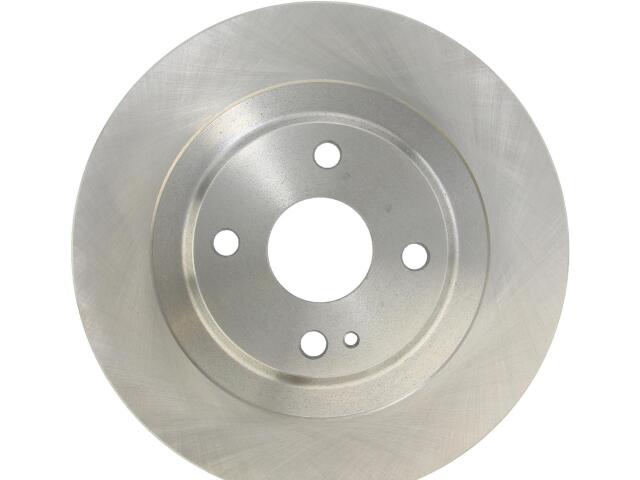

Rotor
FVP : 12145087

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.169
Center Hole Diameter (MM): 55.100
Disc Mounting: Floating
Discard Thickness (IN): 0.295
Discard Thickness (MM): 7.500
Hat ID in: 4.827
Hat ID mm: 122.600
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.374
Nominal Thickness (MM): 9.500
Outside Diameter (IN): 11.004
Outside Diameter (MM): 279.500
Overall Height (IN): 1.402
Overall Height (MM): 35.600
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.531
Stud/Lug Hole Diameter (MM): 13.500
Stud/Lug Hole Quantity: 4
Surface Type: Smooth

适用车型

FIAT (1)

MAZDA (1)

OE号码

品牌	号码
OE	121-4508*
