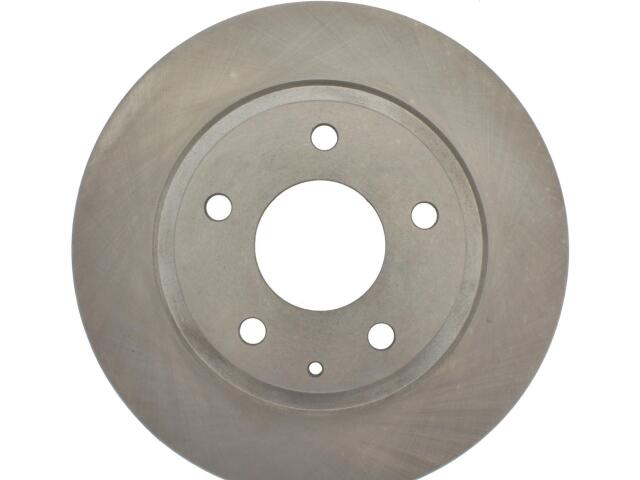

Rotor
FVP : 12145085

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.681
Center Hole Diameter (MM): 68.100
Disc Mounting: Floating
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Hat ID in: 5.575
Hat ID mm: 141.600
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 10.925
Outside Diameter (MM): 277.500
Overall Height (IN): 1.555
Overall Height (MM): 39.500
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.524
Stud/Lug Hole Diameter (MM): 13.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	121-4508*
