FVP
12145083

第三方数据FVP : 12145083

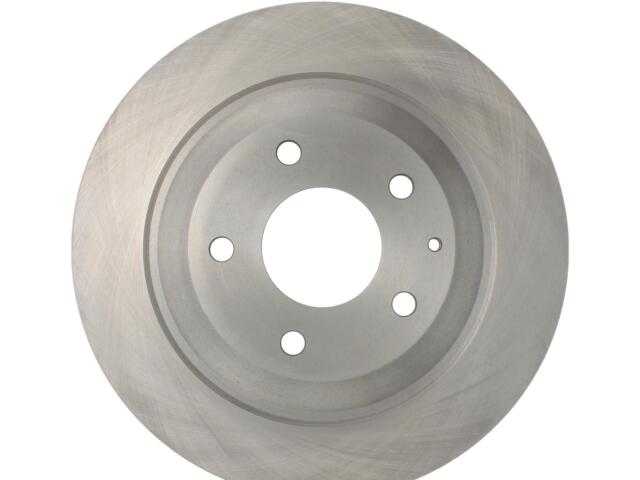

Rotor
FVP : 12145083

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Hat ID in: 5.571
Hat ID mm: 141.500
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 11.906
Outside Diameter (MM): 302.400
Overall Height (IN): 1.559
Overall Height (MM): 39.600
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.512
Stud/Lug Hole Diameter (MM): 13.000
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	121-4508*
