第三方数据FVP : 12145082

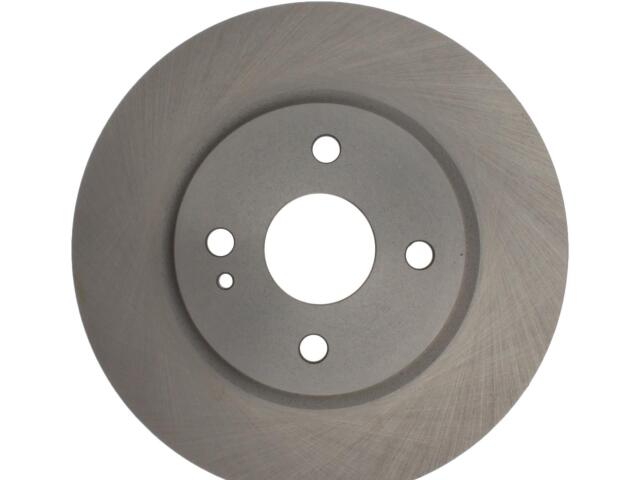

Rotor
FVP : 12145082

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.165
Center Hole Diameter (MM): 55.000
Disc Mounting: Floating
Discard Thickness (IN): 0.827
Discard Thickness (MM): 21.000
Hat ID in: 5.283
Hat ID mm: 134.200
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.906
Nominal Thickness (MM): 23.000
Outside Diameter (IN): 10.157
Outside Diameter (MM): 258.000
Overall Height (IN): 1.728
Overall Height (MM): 43.900
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.512
Stud/Lug Hole Diameter (MM): 13.000
Stud/Lug Hole Quantity: 4
Surface Type: Smooth
Vane Style: Straight

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	121-4508*
