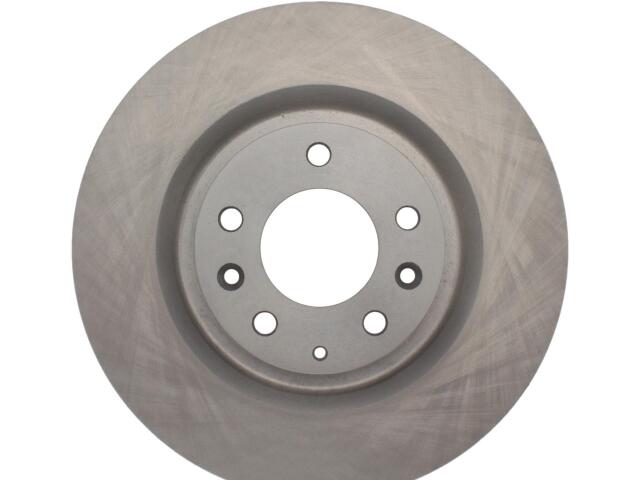

Rotor
FVP : 12145080

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.835
Center Hole Diameter (MM): 72.000
Disc Mounting: Floating
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
Outside Diameter (IN): 12.579
Outside Diameter (MM): 319.500
Overall Height (IN): 1.890
Overall Height (MM): 48.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.504
Stud/Lug Hole Diameter (MM): 12.800
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	121-4508*
