FVP
12145071

第三方数据FVP : 12145071

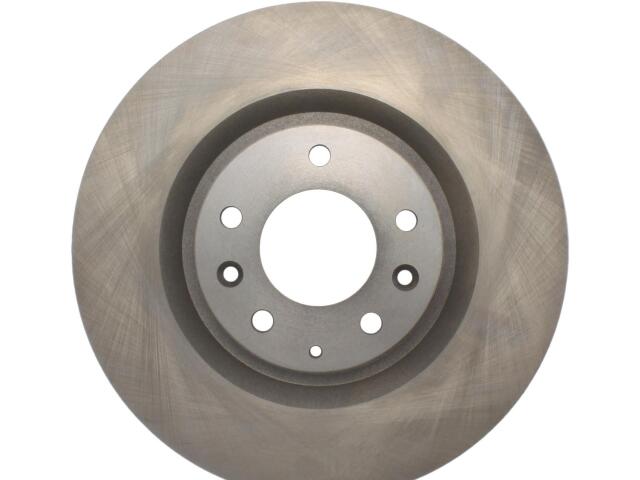

Rotor
FVP : 12145071

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.827
Center Hole Diameter (MM): 71.800
Disc Mounting: Floating
Discard Thickness (IN): 0.866
Discard Thickness (MM): 22.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.945
Nominal Thickness (MM): 24.000
Outside Diameter (IN): 12.717
Outside Diameter (MM): 323.000
Overall Height (IN): 1.768
Overall Height (MM): 44.900
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.508
Stud/Lug Hole Diameter (MM): 12.900
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	121-4507*
