FVP
12145068

第三方数据FVP : 12145068

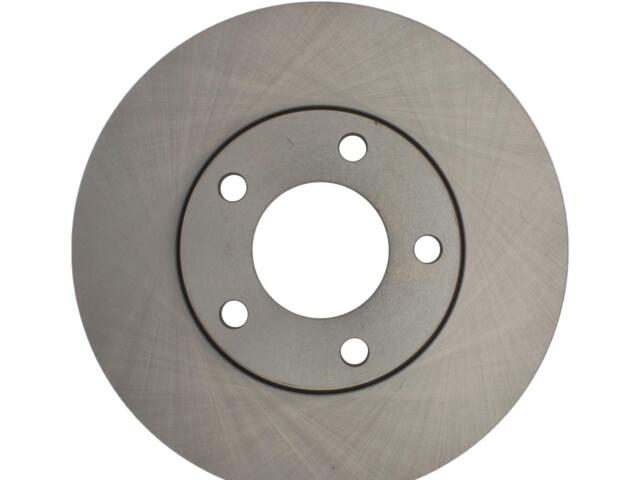

Rotor
FVP : 12145068

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.835
Center Hole Diameter (MM): 72.000
Disc Mounting: Floating
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.980
Nominal Thickness (MM): 24.900
Outside Diameter (IN): 10.945
Outside Diameter (MM): 278.000
Overall Height (IN): 1.917
Overall Height (MM): 48.700
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.551
Stud/Lug Hole Diameter (MM): 14.000
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	121-4506*
