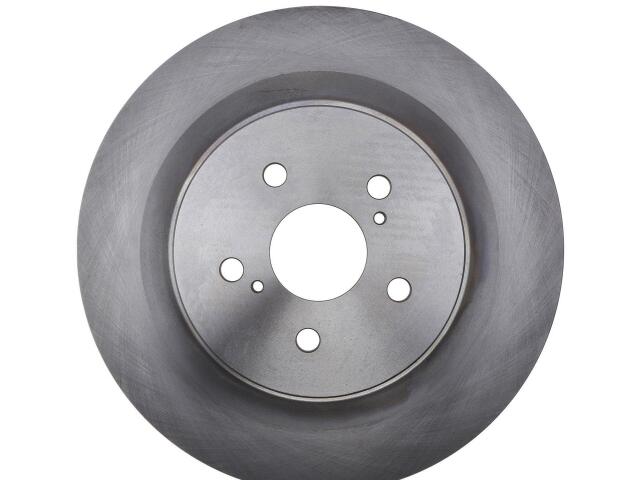

Rotor
FVP : 12144216

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.441
Center Hole Diameter (MM): 62.000
Disc Mounting: Floating
Discard Thickness (IN): 0.650
Discard Thickness (MM): 16.500
Hat ID in: 6.949
Hat ID mm: 176.500
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.709
Nominal Thickness (MM): 18.000
OEM Vane Count: 52
Outside Diameter (IN): 13.313
Outside Diameter (MM): 338.150
Overall Height (IN): 1.555
Overall Height (MM): 39.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.565
Stud/Lug Hole Diameter (MM): 14.360
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

LEXUS (3)

TOYOTA (1)

OE号码

品牌	号码
OE	121-4421*
