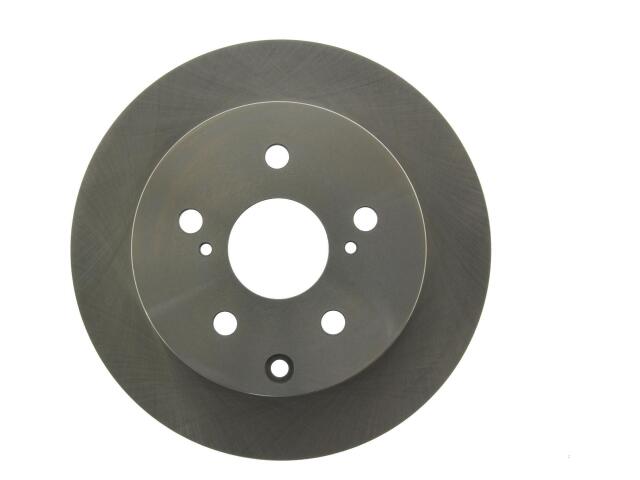

Rotor
FVP : 12144167

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.441
Center Hole Diameter (MM): 62.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.335
Discard Thickness (MM): 8.500
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 11.063
Outside Diameter (MM): 281.000
Overall Height (IN): 2.169
Overall Height (MM): 55.100
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.571
Stud/Lug Hole Diameter (MM): 14.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

TOYOTA (1)

PONTIAC (1)

OE号码

品牌	号码
OE	121-4416*
