FVP
12144145

第三方数据FVP : 12144145

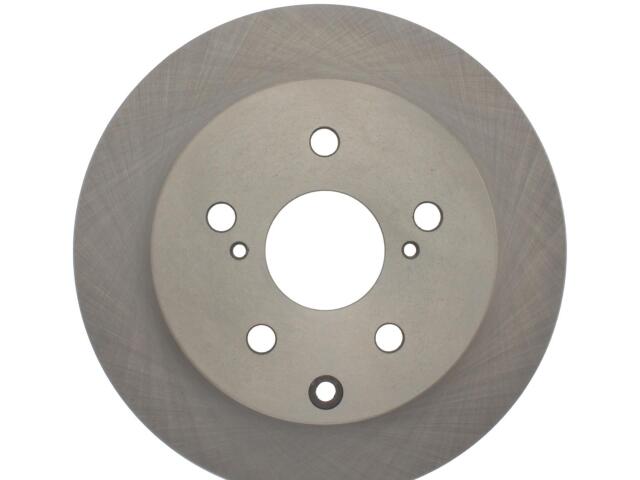

Rotor
FVP : 12144145

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.441
Center Hole Diameter (MM): 62.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.413
Discard Thickness (MM): 10.500
Max PB Drum Dia in: 6.850
Max PB Drum Dia mm: 174.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 6.772
Nominal Drum Diameter (MM): 172.000
Nominal Thickness (IN): 0.469
Nominal Thickness (MM): 11.900
Outside Diameter (IN): 11.067
Outside Diameter (MM): 281.100
Overall Height (IN): 2.173
Overall Height (MM): 55.200
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.571
Stud/Lug Hole Diameter (MM): 14.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

LEXUS (1)

TOYOTA (1)

OE号码

品牌	号码
OE	121-4414*
