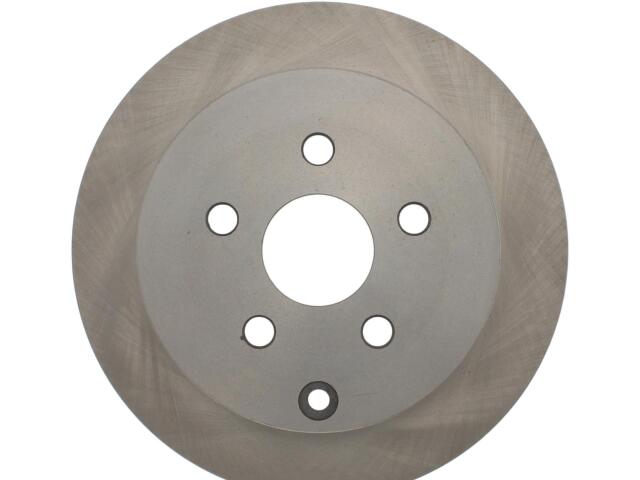

Rotor
FVP : 12144115

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.165
Center Hole Diameter (MM): 55.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.295
Discard Thickness (MM): 7.500
Max PB Drum Dia in: 6.850
Max PB Drum Dia mm: 174.000
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Drum Diameter (IN): 6.811
Nominal Drum Diameter (MM): 173.000
Nominal Thickness (IN): 0.354
Nominal Thickness (MM): 9.000
Outside Diameter (IN): 10.591
Outside Diameter (MM): 269.000
Overall Height (IN): 2.201
Overall Height (MM): 55.900
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.571
Stud/Lug Hole Diameter (MM): 14.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

TOYOTA (3)

PONTIAC (1)

SCION (1)

OE号码

品牌	号码
OE	121-4411*
