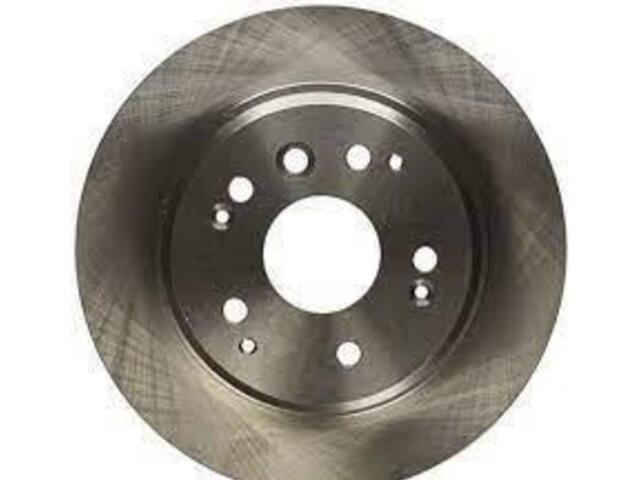

Rotor
FVP : 12142133

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 0.339
Discard Thickness (MM): 8.600
Hat ID in: 6.012
Hat ID mm: 152.700
Mounting Bolt Hole Circle Diameter (IN): 4.520
Mounting Bolt Hole Circle Diameter (MM): 114.800
Nominal Thickness (IN): 0.378
Nominal Thickness (MM): 9.600
Outside Diameter (IN): 11.024
Outside Diameter (MM): 280.000
Overall Height (IN): 1.850
Overall Height (MM): 47.000
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.500
Stud/Lug Hole Diameter (MM): 12.700
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

NISSAN (2)

OE号码

品牌	号码
OE	121-4213*
