第三方数据FVP : 12142111

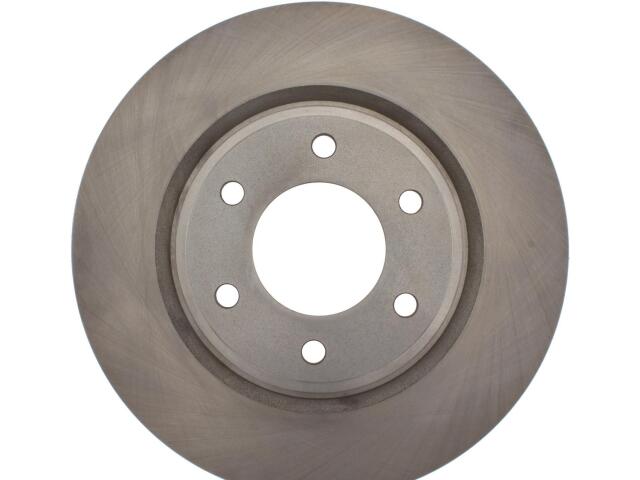

Rotor
FVP : 12142111

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.551
Center Hole Diameter (MM): 90.200
Disc Mounting: Floating
Discard Thickness (IN): 1.122
Discard Thickness (MM): 28.500
Mounting Bolt Hole Circle Diameter (IN): 5.496
Mounting Bolt Hole Circle Diameter (MM): 139.600
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 13.780
Outside Diameter (MM): 350.000
Overall Height (IN): 1.705
Overall Height (MM): 43.300
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.610
Stud/Lug Hole Diameter (MM): 15.500
Stud/Lug Hole Quantity: 6
Surface Type: Smooth
Vane Style: Straight

适用车型

NISSAN (1)

INFINITI (2)

OE号码

品牌	号码
OE	121-4211*
