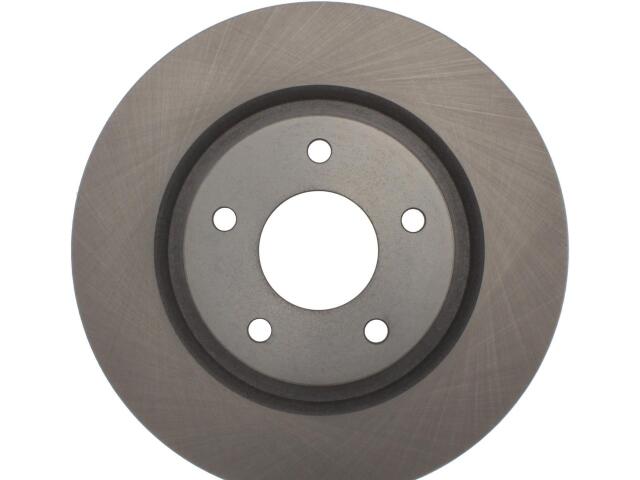

Rotor
FVP : 12142108

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 0.945
Discard Thickness (MM): 24.000
Hat ID in: 5.763
Hat ID mm: 146.370
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26.000
Outside Diameter (IN): 11.634
Outside Diameter (MM): 295.500
Overall Height (IN): 1.732
Overall Height (MM): 44.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.504
Stud/Lug Hole Diameter (MM): 12.800
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

NISSAN (2)

OE号码

品牌	号码
OE	121-4210*
