FVP
12142092

第三方数据FVP : 12142092

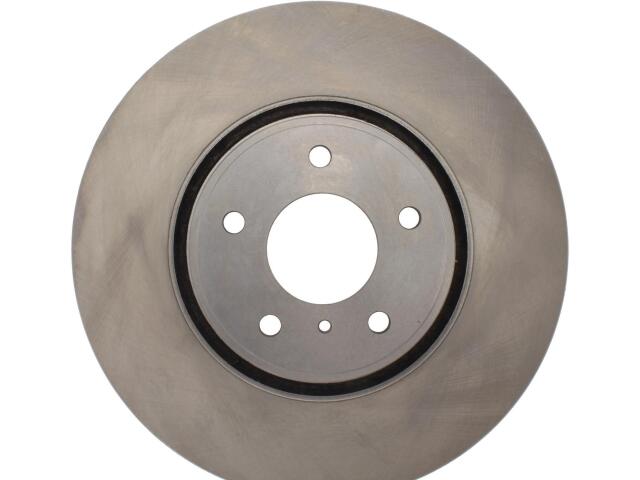

Rotor
FVP : 12142092

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 1.260
Discard Thickness (MM): 32.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.339
Nominal Thickness (MM): 34.000
Outside Diameter (IN): 12.598
Outside Diameter (MM): 320.000
Overall Height (IN): 1.937
Overall Height (MM): 49.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.500
Stud/Lug Hole Diameter (MM): 12.700
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

INFINITI (4)

OE号码

品牌	号码
OE	121-4209*
