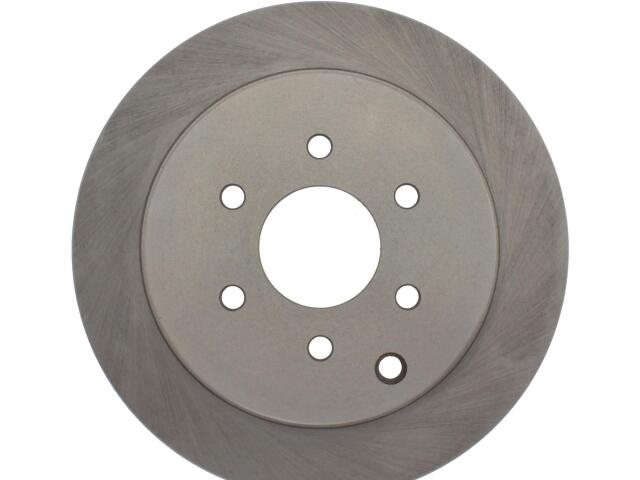

Rotor
FVP : 12142086

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.630
Discard Thickness (MM): 16.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.709
Nominal Thickness (MM): 18.000
Outside Diameter (IN): 12.114
Outside Diameter (MM): 307.700
Overall Height (IN): 2.472
Overall Height (MM): 62.800
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.504
Stud/Lug Hole Diameter (MM): 12.800
Stud/Lug Hole Quantity: 6
Surface Type: Smooth
Vane Style: Straight

适用车型

NISSAN (1)

OE号码

品牌	号码
OE	121-4208*
