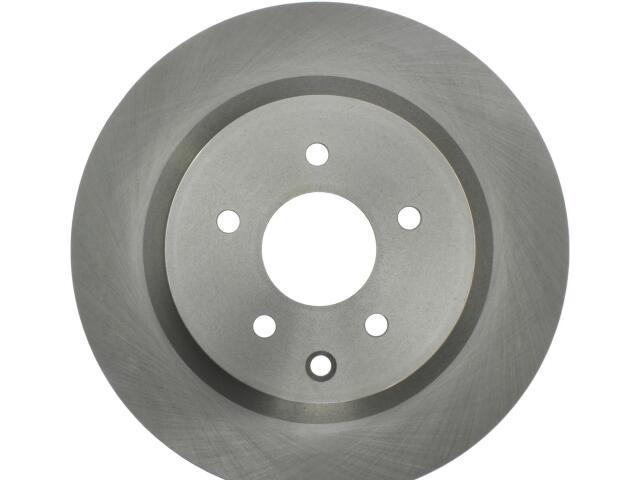

Rotor
FVP : 12142079

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.795
Discard Thickness (MM): 20.200
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 6.764
Nominal Drum Diameter (MM): 171.800
Nominal Thickness (IN): 0.874
Nominal Thickness (MM): 22.200
Outside Diameter (IN): 12.677
Outside Diameter (MM): 322.000
Overall Height (IN): 2.449
Overall Height (MM): 62.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.504
Stud/Lug Hole Diameter (MM): 12.800
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Pillar

适用车型

NISSAN (1)

OE号码

品牌	号码
OE	121-4207*
