FVP
12142067

第三方数据FVP : 12142067

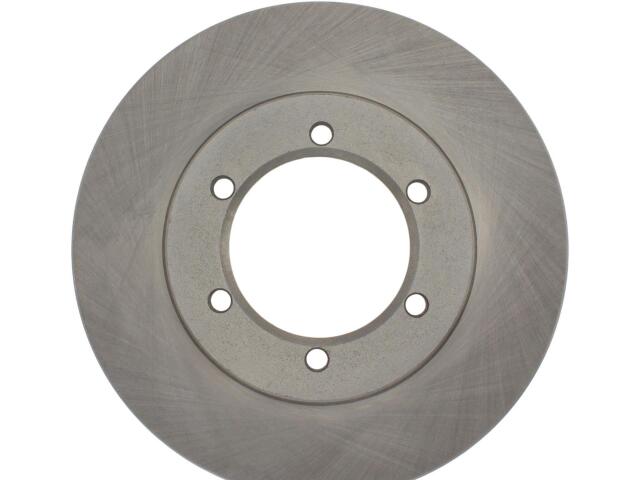

Rotor
FVP : 12142067

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.622
Center Hole Diameter (MM): 92.000
Disc Mounting: Behind the Hub
Discard Thickness (IN): 0.945
Discard Thickness (MM): 24.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Mounting Bolt Hole Diameter (IN): 0.417
Mounting Bolt Hole Diameter (MM): 10.600
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26.000
Outside Diameter (IN): 10.228
Outside Diameter (MM): 259.800
Overall Height (IN): 1.575
Overall Height (MM): 40.000
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

NISSAN (1)

OE号码

品牌	号码
OE	121-4206*
