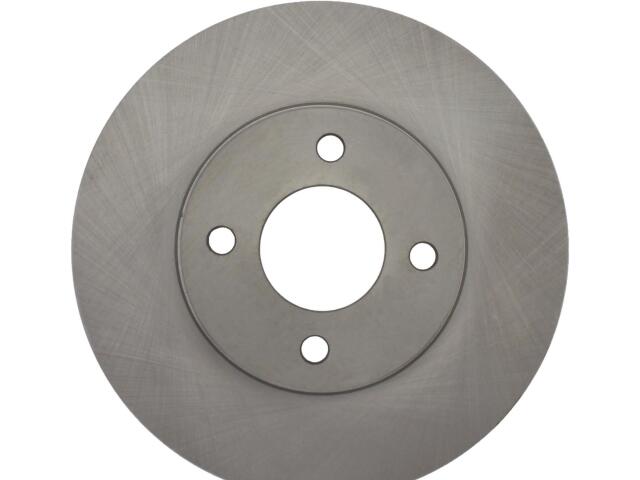

Rotor
FVP : 12142056

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.402
Center Hole Diameter (MM): 61.000
Disc Mounting: Floating
Discard Thickness (IN): 0.945
Discard Thickness (MM): 24.000
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26.000
Outside Diameter (IN): 10.118
Outside Diameter (MM): 257.000
Overall Height (IN): 1.780
Overall Height (MM): 45.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.502
Stud/Lug Hole Diameter (MM): 12.750
Stud/Lug Hole Quantity: 4
Surface Type: Smooth
Vane Style: Straight

适用车型

NISSAN (1)

OE号码

品牌	号码
OE	121-4205*
