FVP
12142051

第三方数据FVP : 12142051

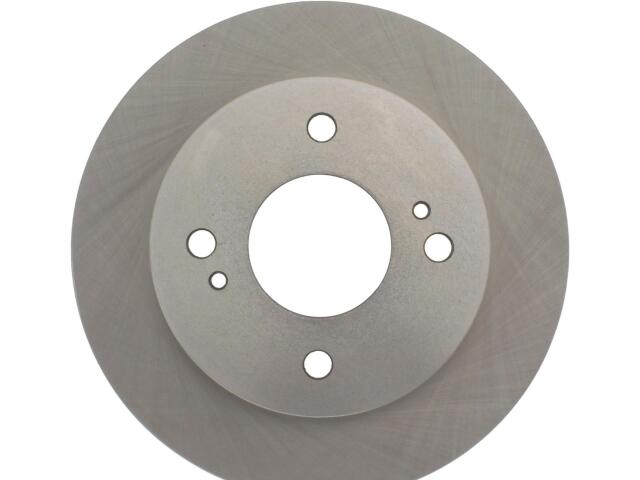

Rotor
FVP : 12142051

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 10.157
Outside Diameter (MM): 258.000
Overall Height (IN): 1.752
Overall Height (MM): 44.500
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.502
Stud/Lug Hole Diameter (MM): 12.750
Stud/Lug Hole Quantity: 4
Surface Type: Smooth

适用车型

NISSAN (2)

OE号码

品牌	号码
OE	121-4205*
