FVP
12140100

第三方数据FVP : 12140100

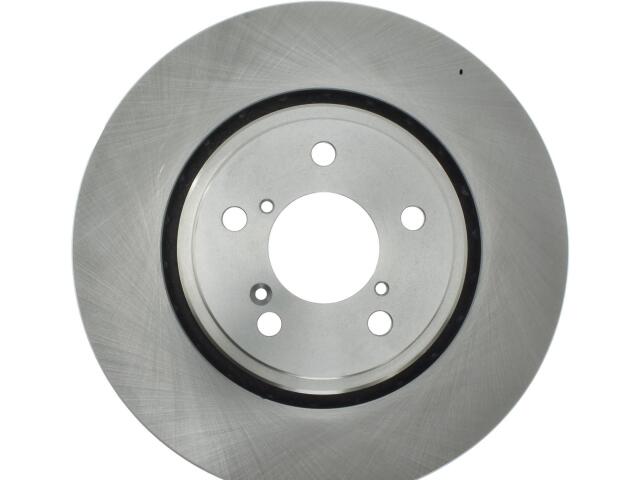

Rotor
FVP : 12140100

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.756
Center Hole Diameter (MM): 70.000
Disc Mounting: Floating
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28.000
Hat ID in: 6.012
Hat ID mm: 152.700
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.000
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
OEM Vane Count: 44
Outside Diameter (IN): 12.992
Outside Diameter (MM): 330.000
Overall Height (IN): 1.870
Overall Height (MM): 47.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.571
Stud/Lug Hole Diameter (MM): 14.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

ACURA (1)

OE号码

品牌	号码
OE	121-4010*
