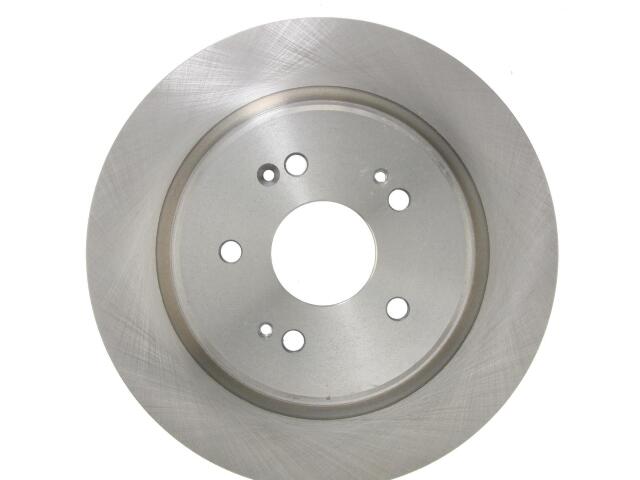

Rotor
FVP : 12140087

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.524
Center Hole Diameter (MM): 64.100
Disc Mounting: Floating
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Hat ID in: 6.661
Hat ID mm: 169.200
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Notes: Similar to 120.40081
Outside Diameter (IN): 12.205
Outside Diameter (MM): 310.000
Overall Height (IN): 1.492
Overall Height (MM): 37.900
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.500
Stud/Lug Hole Diameter (MM): 12.700
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

HONDA (1)

ACURA (1)

OE号码

品牌	号码
OE	121-4008*
