FVP
12140063

第三方数据FVP : 12140063

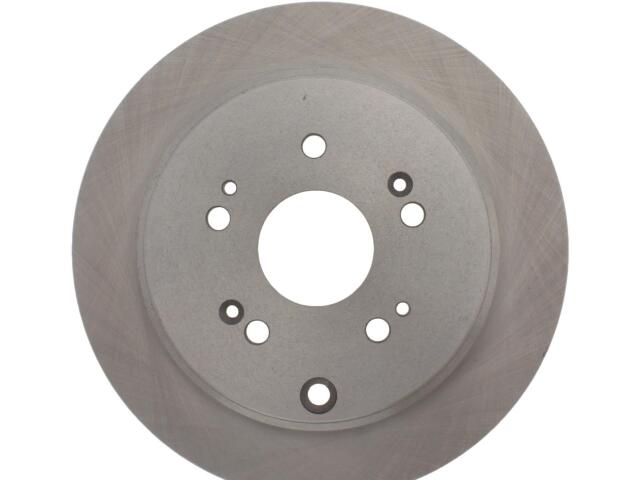

Rotor
FVP : 12140063

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.524
Center Hole Diameter (MM): 64.100
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.295
Discard Thickness (MM): 7.500
Hat ID in: 7.185
Hat ID mm: 182.500
Max PB Drum Dia in: 7.913
Max PB Drum Dia mm: 201.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 7.870
Nominal Drum Diameter (MM): 199.900
Nominal Thickness (IN): 0.354
Nominal Thickness (MM): 9.000
Outside Diameter (IN): 11.988
Outside Diameter (MM): 304.500
Overall Height (IN): 2.394
Overall Height (MM): 60.800
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.496
Stud/Lug Hole Diameter (MM): 12.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

HONDA (1)

ACURA (1)
