FVP
12139056

第三方数据FVP : 12139056

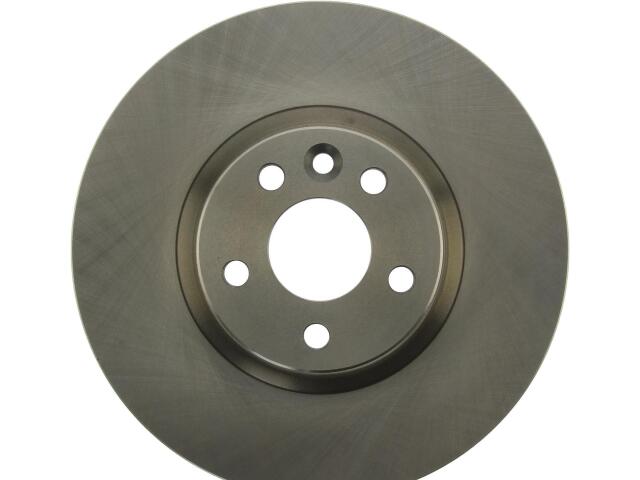

Rotor
FVP : 12139056

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.504
Center Hole Diameter (MM): 63.600
Disc Mounting: Floating
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Hat ID in: 5.484
Hat ID mm: 139.300
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
OEM Vane Count: 40
Outside Diameter (IN): 12.756
Outside Diameter (MM): 324.000
Overall Height (IN): 2.051
Overall Height (MM): 52.100
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.622
Stud/Lug Hole Diameter (MM): 15.800
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

VOLVO (1)

OE号码

品牌	号码
OE	121-3905*
