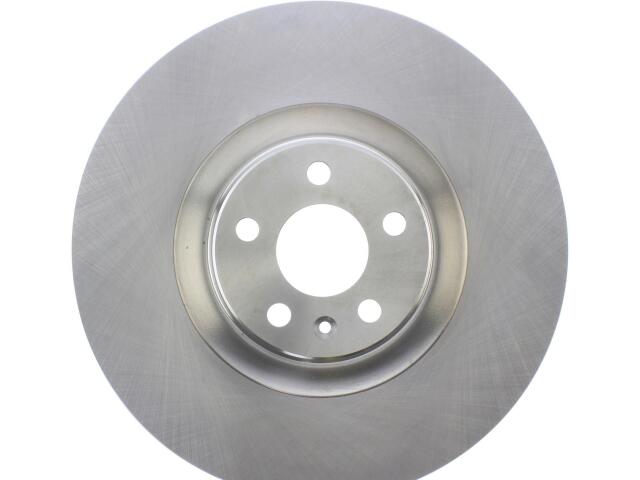

Rotor
FVP : 12139052

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.500
Center Hole Diameter (MM): 63.500
Disc Mounting: Floating
Discard Thickness (IN): 1.083
Discard Thickness (MM): 27.500
Hat ID in: 5.504
Hat ID mm: 139.800
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
OEM Vane Count: 160
Outside Diameter (IN): 14.409
Outside Diameter (MM): 366.000
Overall Height (IN): 1.898
Overall Height (MM): 48.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.614
Stud/Lug Hole Diameter (MM): 15.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Pillar

适用车型

VOLVO (2)

OE号码

品牌	号码
OE	121-3905*
