FVP
12138013

第三方数据FVP : 12138013

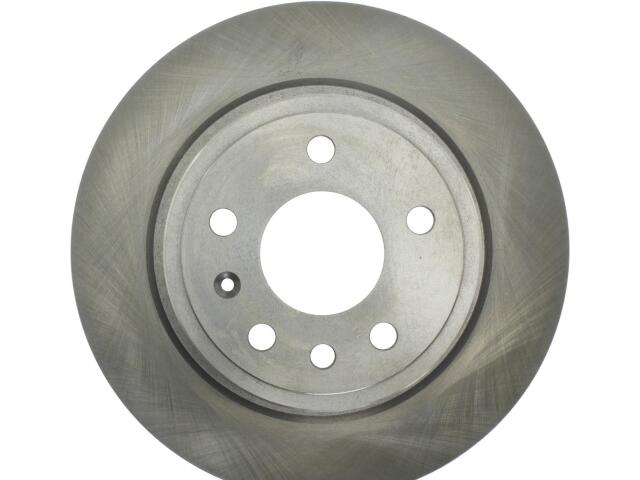

Rotor
FVP : 12138013

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.579
Center Hole Diameter (MM): 65.500
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Mounting Bolt Hole Circle Diameter (IN): 4.331
Mounting Bolt Hole Circle Diameter (MM): 110.000
Nominal Drum Diameter (IN): 6.303
Nominal Drum Diameter (MM): 160.100
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 11.260
Outside Diameter (MM): 286.000
Overall Height (IN): 2.724
Overall Height (MM): 69.200
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.559
Stud/Lug Hole Diameter (MM): 14.200
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

SAAB (1)

OE号码

品牌	号码
OE	121-3801*
