FVP
12138012

第三方数据FVP : 12138012

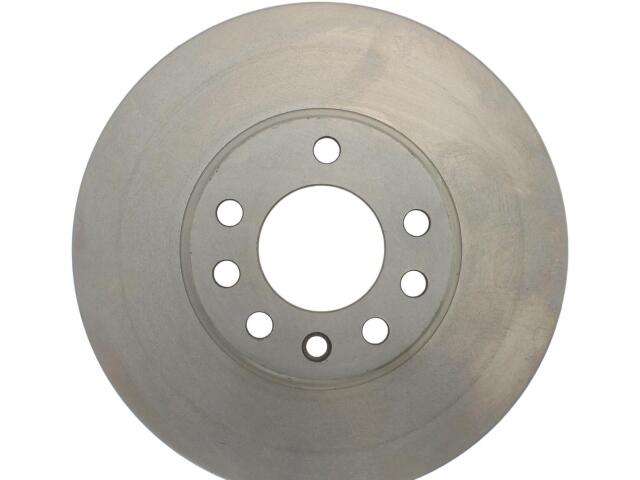

Rotor
FVP : 12138012

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.756
Center Hole Diameter (MM): 70.000
Disc Mounting: Floating
Discard Thickness (IN): 0.866
Discard Thickness (MM): 22.000
Mounting Bolt Hole Circle Diameter (IN): 4.331
Mounting Bolt Hole Circle Diameter (MM): 110.000
Nominal Thickness (IN): 0.984
Nominal Thickness (MM): 25.000
Outside Diameter (IN): 11.339
Outside Diameter (MM): 288.000
Overall Height (IN): 1.661
Overall Height (MM): 42.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.561
Stud/Lug Hole Diameter (MM): 14.250
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Curved

适用车型

SAAB (1)

SATURN (1)

OE号码

品牌	号码
OE	121-3801*
