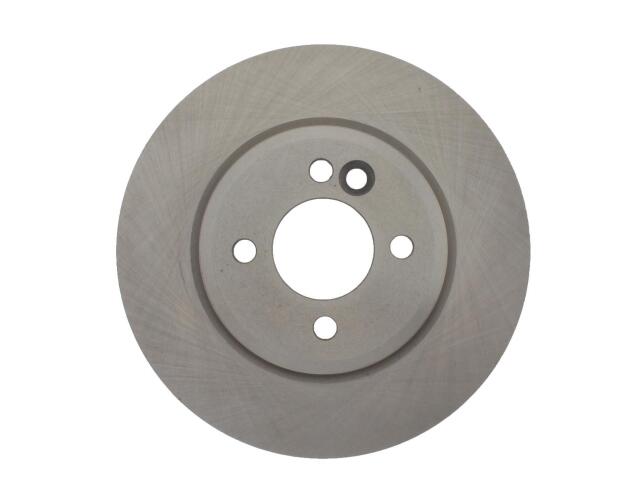

Rotor
FVP : 12134067

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.524
Center Hole Diameter (MM): 64.100
Disc Mounting: Floating
Discard Thickness (IN): 0.803
Discard Thickness (MM): 20.400
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.862
Nominal Thickness (MM): 21.900
Outside Diameter (IN): 10.866
Outside Diameter (MM): 276.000
Overall Height (IN): 1.736
Overall Height (MM): 44.100
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.579
Stud/Lug Hole Diameter (MM): 14.700
Stud/Lug Hole Quantity: 4
Surface Type: Smooth
Vane Style: Straight

适用车型

MINI (1)

OE号码

品牌	号码
OE	121-3406*
