FVP
12133102

第三方数据FVP : 12133102

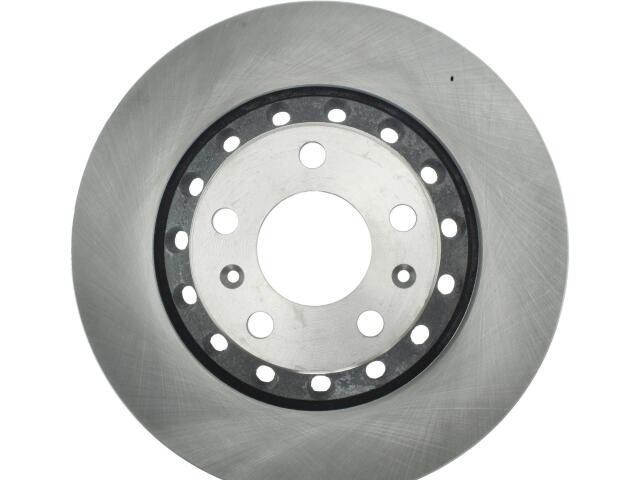

Rotor
FVP : 12133102

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20.000
Mounting Bolt Hole Circle Diameter (IN): 4.421
Mounting Bolt Hole Circle Diameter (MM): 112.300
Nominal Thickness (IN): 0.858
Nominal Thickness (MM): 21.800
Notes: Vented Hat
Outside Diameter (IN): 12.201
Outside Diameter (MM): 309.900
Overall Height (IN): 1.661
Overall Height (MM): 42.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.602
Stud/Lug Hole Diameter (MM): 15.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

VOLKSWAGEN (1)

AUDI (1)

OE号码

品牌	号码
OE	121-3310*
