FVP
12133064

第三方数据FVP : 12133064

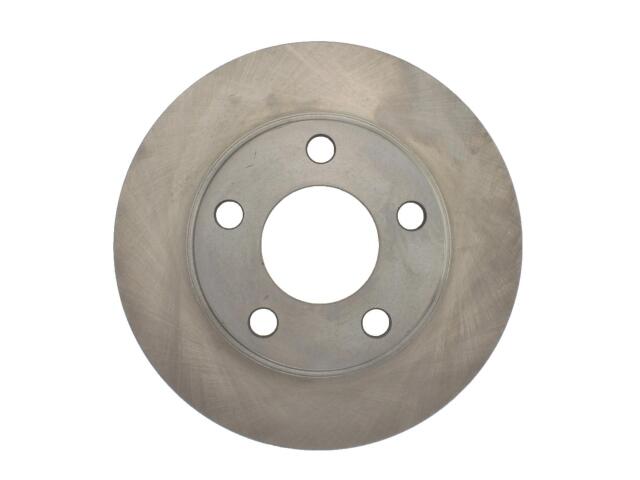

Rotor
FVP : 12133064

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Mounting Bolt Hole Circle Diameter (IN): 4.409
Mounting Bolt Hole Circle Diameter (MM): 112.000
Nominal Thickness (IN): 0.390
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 10.039
Outside Diameter (MM): 255.000
Overall Height (IN): 1.882
Overall Height (MM): 47.800
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.610
Stud/Lug Hole Diameter (MM): 15.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

AUDI (1)

OE号码

品牌	号码
OE	121-3306*
