FVP
12122029

第三方数据FVP : 12122029

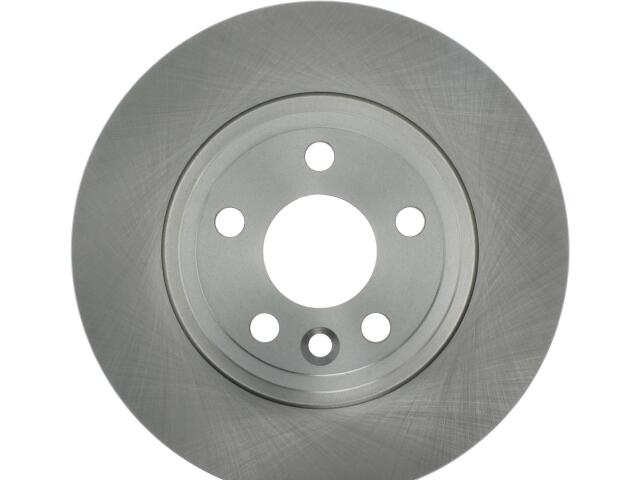

Rotor
FVP : 12122029

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.504
Center Hole Diameter (MM): 63.600
Disc Mounting: Floating
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Hat ID in: 5.728
Hat ID mm: 145.500
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 11.811
Outside Diameter (MM): 300.000
Overall Height (IN): 1.665
Overall Height (MM): 42.300
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.614
Stud/Lug Hole Diameter (MM): 15.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

LAND ROVER (1)

JAGUAR (1)

OE号码

品牌	号码
OE	121-2202*
