第三方数据FVP : 12120015

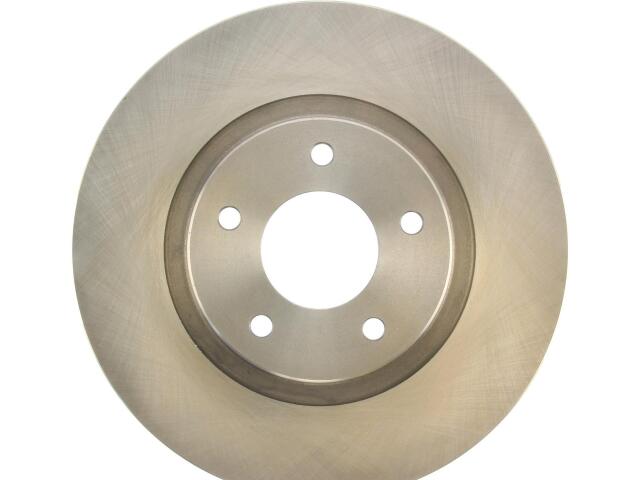

Rotor
FVP : 12120015

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.906
Center Hole Diameter (MM): 73.800
Disc Mounting: Floating
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Mounting Bolt Hole Circle Diameter (IN): 4.752
Mounting Bolt Hole Circle Diameter (MM): 120.700
Nominal Thickness (IN): 1.114
Nominal Thickness (MM): 28.300
Outside Diameter (IN): 12.795
Outside Diameter (MM): 325.000
Overall Height (IN): 1.949
Overall Height (MM): 49.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.531
Stud/Lug Hole Diameter (MM): 13.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

JAGUAR (1)

OE号码

品牌	号码
OE	121-2001*
