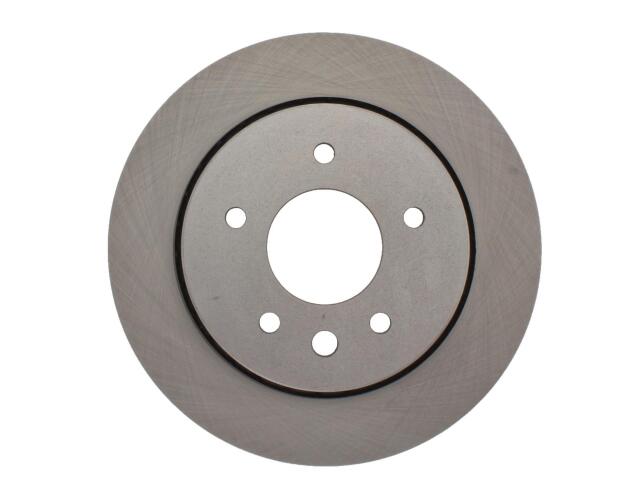

Rotor
FVP : 12120013

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.906
Center Hole Diameter (MM): 73.800
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.728
Discard Thickness (MM): 18.500
Max PB Drum Dia in: 7.126
Max PB Drum Dia mm: 181.000
Mounting Bolt Hole Circle Diameter (IN): 4.752
Mounting Bolt Hole Circle Diameter (MM): 120.700
Nominal Drum Diameter (IN): 7.091
Nominal Drum Diameter (MM): 180.100
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20.000
Outside Diameter (IN): 12.008
Outside Diameter (MM): 305.000
Overall Height (IN): 2.673
Overall Height (MM): 67.900
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.524
Stud/Lug Hole Diameter (MM): 13.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

JAGUAR (1)

OE号码

品牌	号码
OE	121-2001*
