第三方数据FVP : 12104003

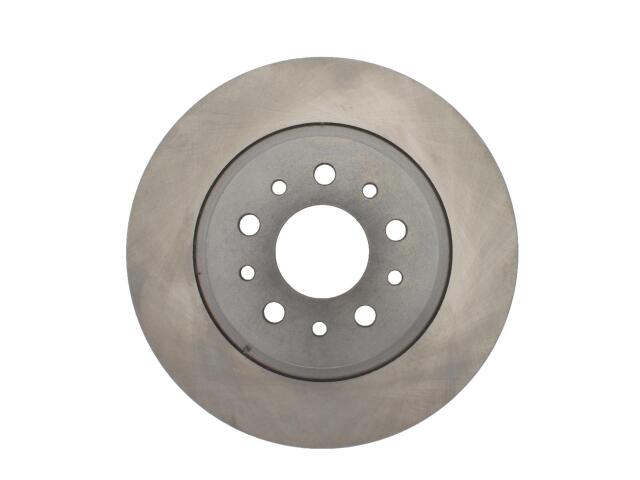

Rotor
FVP : 12104003

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.323
Center Hole Diameter (MM): 59.000
Disc Mounting: Floating
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Hat ID in: 5.307
Hat ID mm: 134.800
Mounting Bolt Hole Circle Diameter (IN): 3.858
Mounting Bolt Hole Circle Diameter (MM): 98.000
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 10.394
Outside Diameter (MM): 264.000
Overall Height (IN): 1.598
Overall Height (MM): 40.600
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.512
Stud/Lug Hole Diameter (MM): 13.000
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FIAT (1)

OE号码

品牌	号码
OE	121-0400*
