第三方数据FVP : 12104000

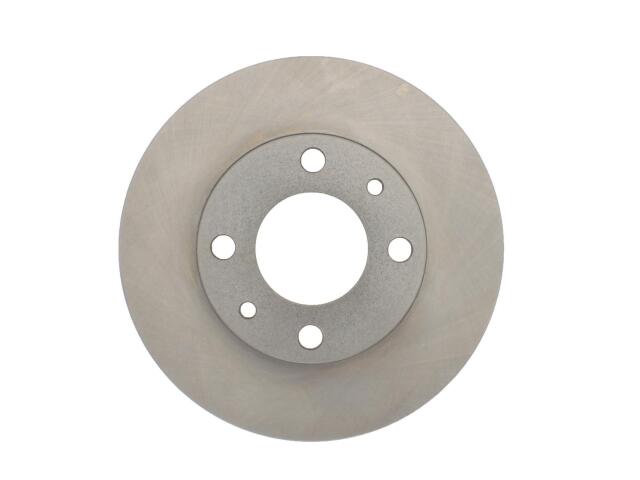

Rotor
FVP : 12104000

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.441
Center Hole Diameter (MM): 62.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9.000
Mounting Bolt Hole Circle Diameter (IN): 3.858
Mounting Bolt Hole Circle Diameter (MM): 98.000
Nominal Drum Diameter (IN): 4.626
Nominal Drum Diameter (MM): 117.500
Nominal Thickness (IN): 0.429
Nominal Thickness (MM): 10.900
Outside Diameter (IN): 8.937
Outside Diameter (MM): 227.000
Overall Height (IN): 1.799
Overall Height (MM): 45.700
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.512
Stud/Lug Hole Diameter (MM): 13.000
Stud/Lug Hole Quantity: 4
Surface Type: Smooth

适用车型

FIAT (1)

OE号码

品牌	号码
OE	121-0400*
