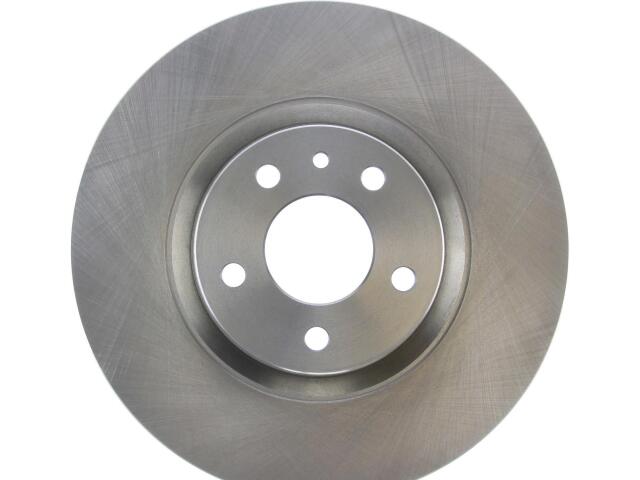

Rotor
FVP : 12102006

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.323
Center Hole Diameter (MM): 59.000
Disc Mounting: Floating
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20.000
Hat ID in: 4.988
Hat ID mm: 126.700
Mounting Bolt Hole Circle Diameter (IN): 3.858
Mounting Bolt Hole Circle Diameter (MM): 98.000
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 11.181
Outside Diameter (MM): 284.000
Overall Height (IN): 1.713
Overall Height (MM): 43.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.512
Stud/Lug Hole Diameter (MM): 13.000
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

ALFA ROMEO (1)

DODGE (1)

OE号码

品牌	号码
OE	121-0200*
