DURAGO
BR901938

第三方数据DURAGO : BR901938

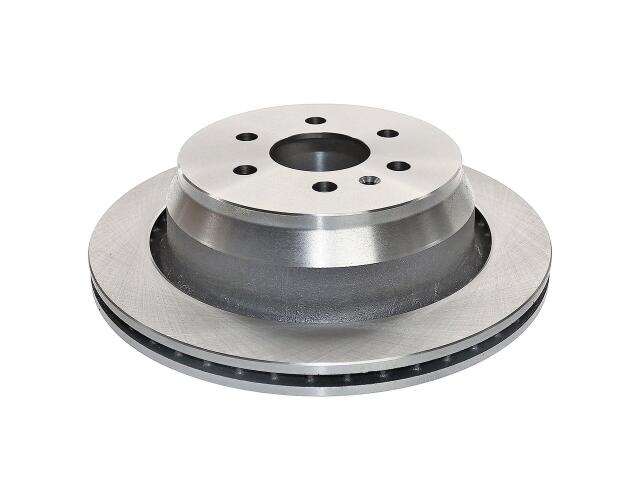

Rotor
DURAGO : BR901938

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.83
Discard Thickness (MM): 21
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.91
Nominal Thickness (MM): 23
Outside Diameter (IN): 13.15
Outside Diameter (MM): 334
Overall Height (IN): 3.25
Overall Height (MM): 82.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	AX90193*
