DURAGO
BR90192401

第三方数据DURAGO : BR90192401

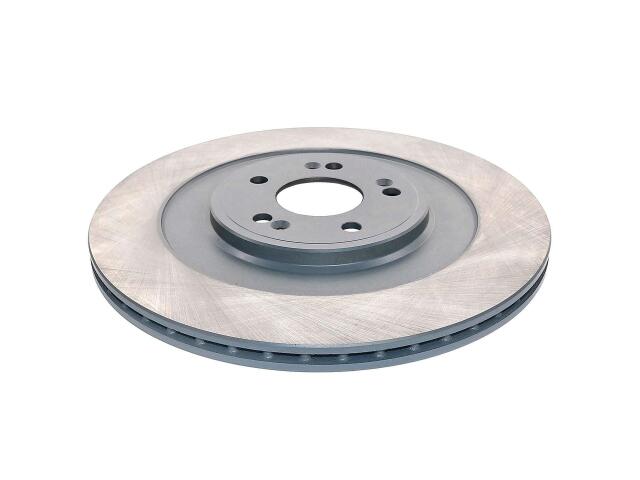

Rotor
DURAGO : BR90192401

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.72
Center Hole Diameter (MM): 69
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.71
Discard Thickness (MM): 18
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.79
Nominal Thickness (MM): 20
Outside Diameter (IN): 14.17
Outside Diameter (MM): 360
Overall Height (IN): 1.27
Overall Height (MM): 32.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

GENESIS (4)

GV80 (2)

G90 (1)

ELECTRIFIED G80 (1)

GV60 (1)

OE号码

品牌	号码
OE	BR901924-0*

品牌	号码
OE	AX901924*
