DURAGO
BR901916

第三方数据DURAGO : BR901916

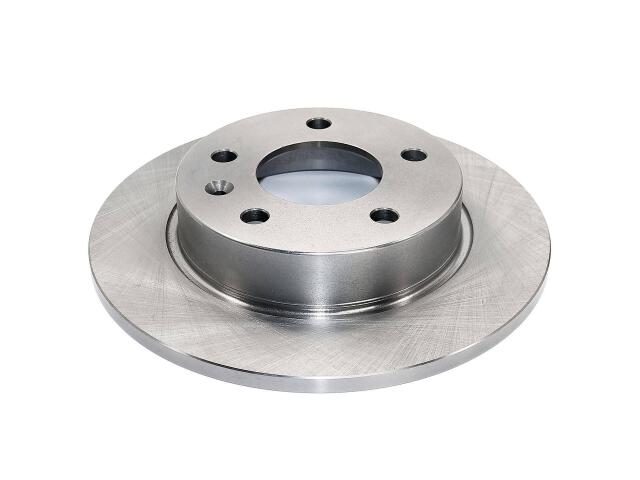

Rotor
DURAGO : BR901916

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.31
Discard Thickness (MM): 8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.55
Mounting Bolt Hole Diameter (MM): 14
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.39
Outside Diameter (MM): 264
Overall Height (IN): 1.73
Overall Height (MM): 44
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

BUICK (1)

CHEVROLET (1)

OE号码

品牌	号码
OE	AX90191*
